通用管接头
快换管接头 KQ2
| 系列 | 释放套形状 | 尺寸 | 连接螺纹 |
|---|
| KQ2 | 椭圆形 | 公制、英制 | M，R，Rc，G，NPT，Uni |
| KQ2 | 圆形 | 公制、英制 | M，R，Rc，G，NPT，Uni |
产品特点

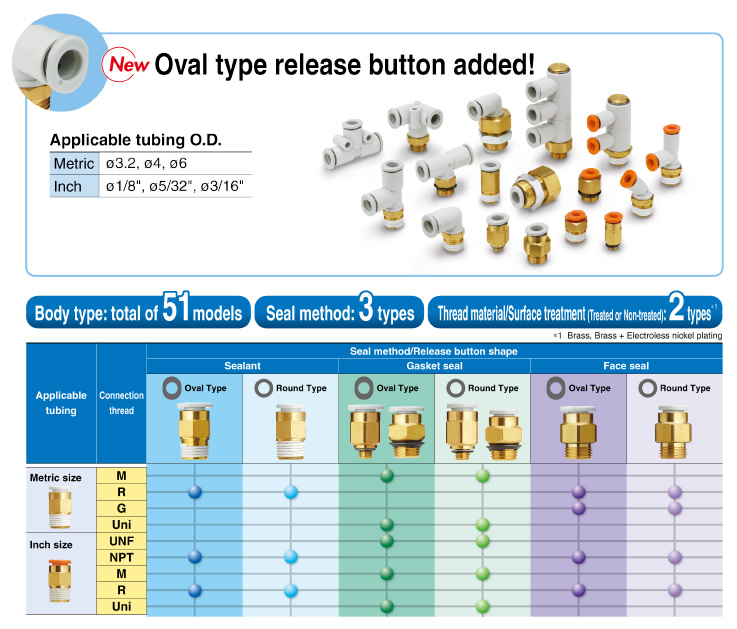

Oval type release button added [New]
Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction *
* Tube pulling out strength is ensured to be equivalent to existing model.

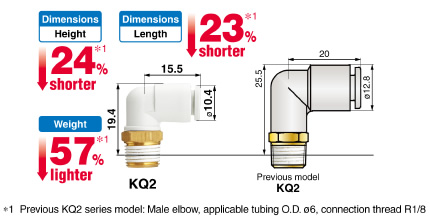

Compact and lightweight
Dimensions Height direction 24% shorter *
Dimensions Horizontal direction 23% shorter *
Weight 57% lighter *
* Existing model KQ2 series Male elbow/Applicable tubing O.D.: ø6/Connection thread: R1/8
KQ, KQ2 and KJ consolidated into "KQ2"
Enhanced variation, Lightweight, Compact

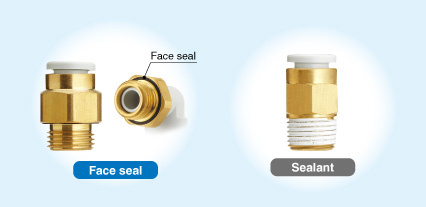

Selectable seal method *
* Connection thread: R, NPT
Selectable surface treatment
Brass (No plating)
Brass + Electroless nickel plated

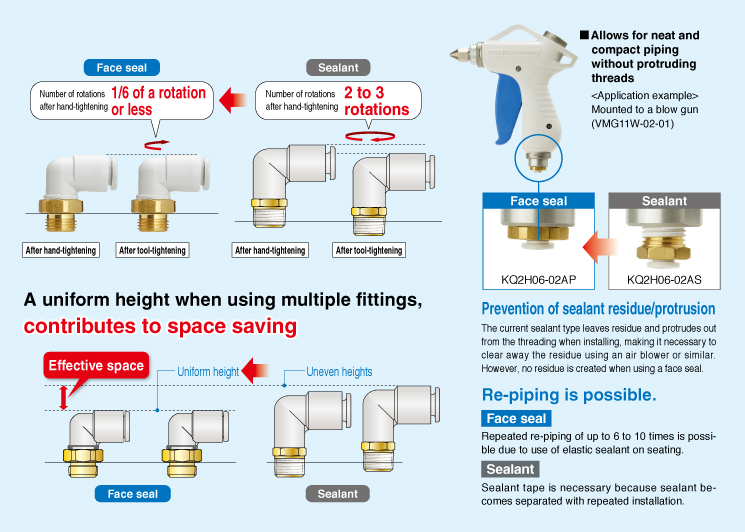

Face seal adopted for threading.
Original thread construction which allows for the use of piping taper female threads (Rc, NPT)
Improved installability(Reduced tool-tightening after hand-tightening)
Oval Type/Round Type Variations
